SAP Concur

SAP Concur (opens new window) is a cloud-based travel and expense management platform that helps businesses manage travel bookings, expense reporting, and invoice processing.

API version

The SAP Concur connector uses the following SAP Concur APIs:

• Expense Group Configurations v3 (opens new window)
• Expenses v4 (opens new window)
• Identity v4 (opens new window)
• Image v1.0 (opens new window) and Image v3 (opens new window)
• Invoice v3 (opens new window)
• List v4 (opens new window)
• List Item v4 (opens new window)
• Payment Batches v1.1 (opens new window)
• Reports v3 (opens new window) and Reports v4 (opens new window)
• Submit v1.1 (opens new window)
• Travel Extension v4 (opens new window)
• User Provisioning v4 (opens new window)
• Vendor v3.1 (opens new window)

Refer to the Required scopes by trigger and action section for details on how these APIs relate to specific triggers and actions.

Connection setup

The SAP Concur connector supports the following OAuth 2.0 authentication types:

• Refresh token grant
• Password grant
• Authorization code grant

REQUIRED SCOPE

You must add the EXPRPT scope when connecting to SAP Concur. SAP Concur returns a Forbidden Request error without this scope.

Create an OAuth 2.0 application

All authentication methods require an OAuth 2.0 application in your SAP Concur instance. Complete the following steps to create one, or refer to the OAuth 2.0 Application Management Tool (opens new window) documentation:

1

Sign in to your SAP Concur instance with administrator credentials.

2

Go to Administration > Company > Authentication Admin.

3

Select OAuth 2.0 Application Management from the menu.

4

Click Create new app.

5

Complete the basic application configuration fields:

• App Name: Enter a descriptive name for your application (for example, Workato Integration).
• App Description: Enter a description for your application.
• App Stage: Select your environment (Development, Test, or Production).
• Application Type: Select your application type (Web Services (WS) Client or Integration with Concur Solutions (ICS) Client).
• Allowed Grants: Select the grants your integration requires. Select password and refresh_token for password grant or refresh token grant authentication. Select authorization_code for authorization code grant authentication.
• Redirect URIs: Enter https://www.workato.com/oauth/callback for authorization code grant authentication. This field appears only when authorization_code is selected.

6

Configure the allowed scopes for your integration. At minimum, include EXPRPT. Refer to the Required scopes by trigger and action section to identify any additional scopes required by the triggers and actions you plan to use.

Alternatively, you can click Enter Manually and copy and paste the following scopes to enable full connector functionality:

ATTEND
CONFIG
expense.report.read
expense.report.readwrite
EXPRPT
identity.user.core.read
identity.user.coreenterprise.writeonly
identity.user.coresensitive.read
identity.user.enterprise.read
identity.user.externalID.writeonly
identity.user.ids.read
identity.user.sap.read
INVPMT
INVVEN
LIST
openid
spend.list.read
spend.list.write
spend.listitem.delete
spend.listitem.read
spend.listitem.write
spend.user.general.read
spend.user.general.writeonly
travel.user.general.read
travel.user.private.read
user.provision.read
user.provision.write
user.read
user.write

7

Click Submit.

8

Record your Client ID and Client Secret in a secure location. These values are required to establish the connection in Workato.

SAVE YOUR CREDENTIALS

The client secret is only displayed once. If you lose it, you must regenerate it or create a new application.

Refresh token grant

Use this authentication method for production instances. Contact your Concur account manager to receive refresh token credentials.

Generate a company request token

Complete the following steps to generate a company request token:

1

In the SAP Concur admin panel, go to Administration > Company > Authentication Admin.

2

Select Company Request Token from the menu.

3

Enter your App ID (Client ID) from the OAuth application you created in the previous section.

4

Click Submit.

5

Record the following information displayed in the success dialog:

• Company UUID: Your company's unique identifier.
• Company Request Token: A temporary token that expires in 24 hours.

TOKEN EXPIRATION

The company request token expires after 24 hours. If you don't complete the next steps within 24 hours, you must regenerate the token.

6

Click OK to close the dialog.

Obtain a refresh token

Complete the following steps to obtain a refresh token using your company request token:

1

Open an API client of your choice, such as Postman or cURL.

2

Create a POST request to the SAP Concur OAuth2 token resource using the endpoint that matches your SAP Concur environment:

• Production: https://us.api.concursolutions.com/oauth2/v0/token
• Implementation (Test): https://us-impl.api.concursolutions.com/oauth2/v0/token

3

Configure the request body with the following parameters (use x-www-form-urlencoded format):

• client_id: Your Client ID from the OAuth application
• client_secret: Your Client Secret from the OAuth application
• username: Your Company UUID from the Company Request Token step
• password: Your Company Request Token from the Company Request Token step
• grant_type: password
• credtype: authtoken

Example Postman configuration:

Postman configuration

4

Send the request.

5

Record the refresh_token value in a secure location. This value is required to establish the SAP Concur connection in Workato.

Connect to SAP Concur using refresh token grant

Complete the following steps to connect to SAP Concur using refresh token grant authentication:

1

Click Create > Connection.

2

Search for and select SAP Concur on the New connection page.

3

Enter a name for your connection in the Connection name field. Give this connection a unique name that identifies which SAP Concur instance it's connected to.

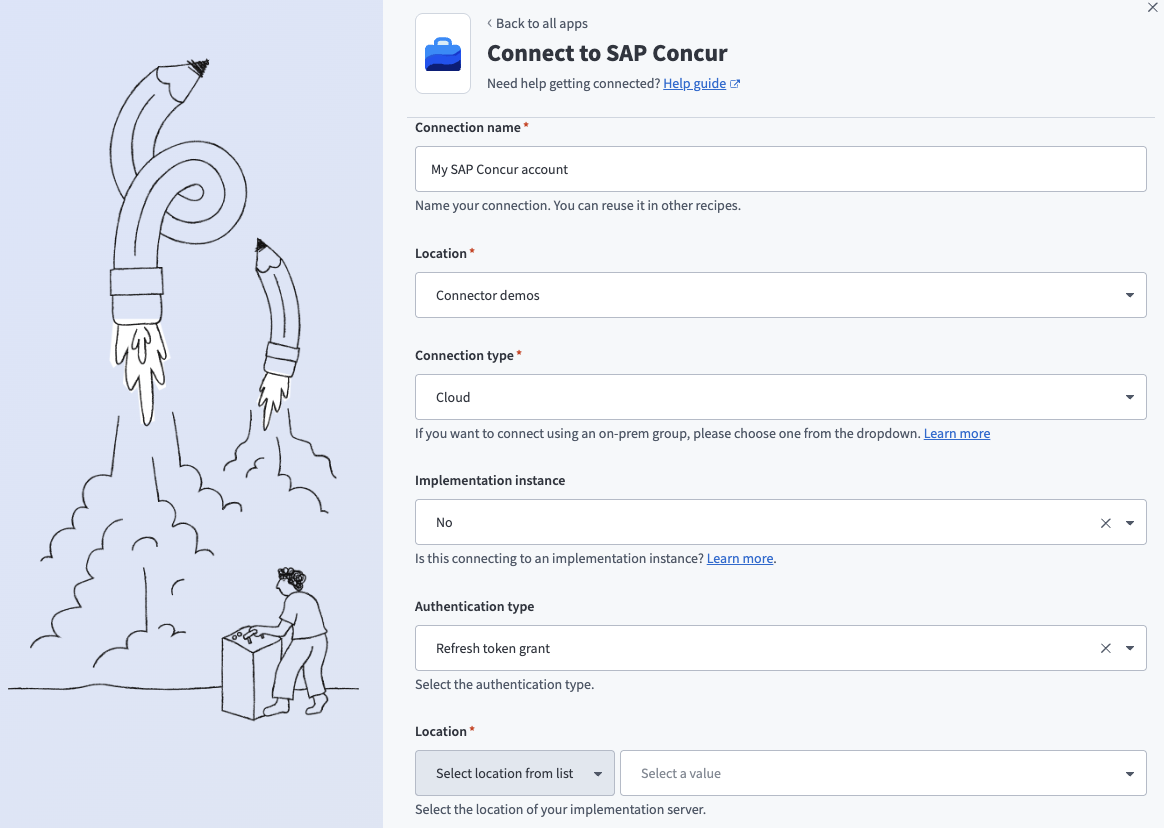

Connect to SAP Concur

4

Use the first Location drop-down menu to select the project or folder to store your connection.

5

Use the Implementation instance drop-down menu to select whether you're connecting to a Concur implementation server. Select Yes if connecting to an implementation server. Defaults to No for existing connections.

6

Use the Authentication type drop-down menu to select Refresh token grant.

7

Use the second Location drop-down menu to select the location of your Concur implementation server.

8

Enter the client ID from your application in the Client ID field.

9

Enter the client secret from your application in the Client secret field.

10

Enter the refresh token from your application in the Refresh token field.

11

Click Connect.

Password grant

Use this authentication method for sandbox instances.

Connect to SAP Concur using password grant

Complete the following steps to connect to SAP Concur using password grant authentication:

1

Click Create > Connection.

2

Search for and select SAP Concur on the New connection page.

3

Enter a name for your connection in the Connection name field. Give this connection a unique name that identifies which SAP Concur instance it's connected to.

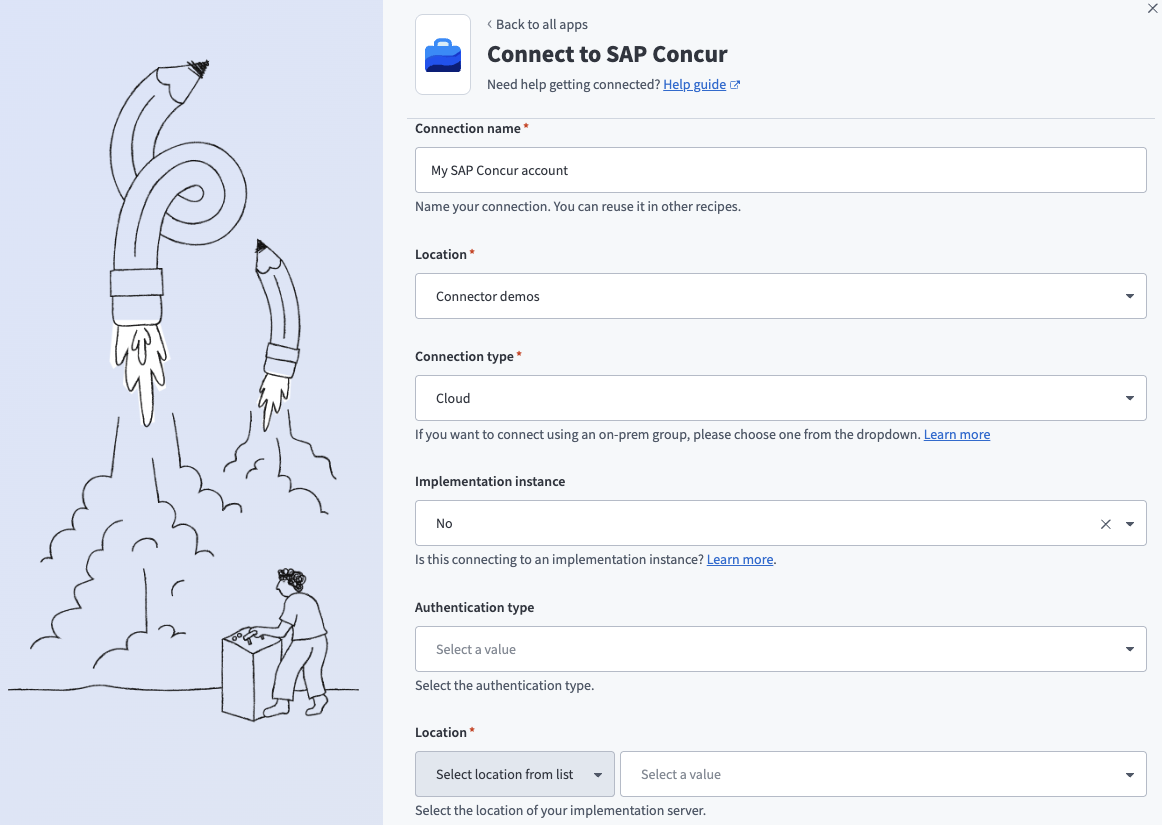

Connect to SAP Concur

4

Use the first Location drop-down menu to select the project or folder to store your connection.

5

Use the Implementation instance drop-down menu to select whether you're connecting to a Concur implementation server. Select Yes if connecting to an implementation server. Defaults to No for existing connections.

6

Use the Authentication type drop-down menu to select Password grant.

7

Enter your SAP Concur Username.

8

Enter your SAP Concur Password.

9

Use the second Location drop-down menu to select the location of your Concur implementation server.

10

Enter the Client ID from your application.

11

Enter the Client secret from your application.

12

Click Connect.

Authorization code grant

Use this authentication method to authenticate with SAP Concur using an interactive OAuth login flow.

Authorization code grant is required to use Verified User Access (VUA). Other grant types, including API keys, basic auth, and other OAuth 2.0 flows, are not compatible with VUA.

This option requires a custom OAuth profile configured with your SAP Concur client credentials.

Set up a custom OAuth profile

Authorization code grant authentication requires a custom OAuth profile in Workato. The profile stores your SAP Concur client credentials and is required to complete the connection. Workato returns an error if you select authorization code grant without a custom OAuth profile, or if the profile is missing a client ID or client secret.

Complete the following steps to create a custom OAuth profile:

1

Go to Tools > Custom OAuth profiles.

2

Click + New custom profile.

3

Search for SAP Concur and select it as your app.

4

Enter a name for the profile.

5

Enter the Client ID and Client secret from the OAuth application you created.

6

Click Save.

Minimum and default scopes

Ensure your SAP Concur OAuth app has every scope you request in the connection settings. The connection fails with a 400 Bad Request error if a requested scope isn't enabled in your OAuth app.

The minimum required scopes are openid, user.read, and EXPRPT. Workato requests the following default scopes if you leave the Scopes field blank. Ensure your OAuth app has all of them configured.

Default scopes:

• openid
• user.read
• user.write
• EXPRPT
• expense.report.read
• expense.report.readwrite
• LIST
• spend.list.read
• spend.list.write
• spend.listitem.read
• spend.listitem.write
• spend.listitem.delete
• IMAGE
• ATTEND
• CONFIG
• INVPMT
• INVVEN
• identity.user.core.read
• identity.user.coresensitive.read
• identity.user.enterprise.read
• identity.user.coreenterprise.writeonly
• identity.user.externalID.writeonly
• identity.user.ids.read
• user.provision.read
• user.provision.write
• spend.user.general.read
• spend.user.general.writeonly
• travel.user.general.read

Connect to SAP Concur using authorization code grant

Complete the following steps to connect to SAP Concur using authorization code grant:

1

Click Create > Connection.

2

Search for SAP Concur and select it as your app.

3

Enter a name for your connection in the Connection name field.

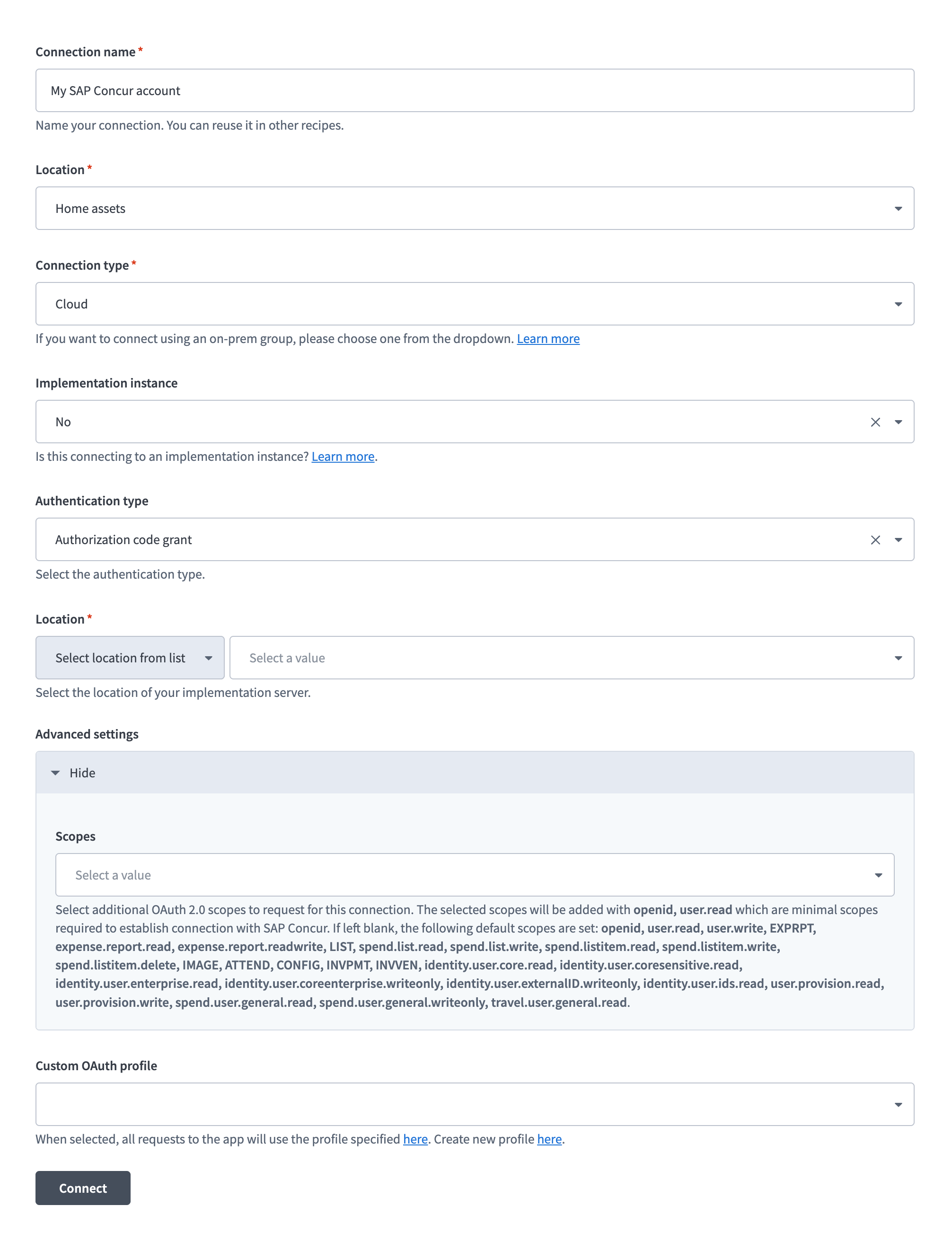

Connect to SAP Concur

4

Use the first Location drop-down menu to select the project or folder to store your connection.

5

Use the Connection type drop-down menu to specify whether this is a cloud or on-prem connection.

6

Use the Implementation instance drop-down menu to specify whether you're connecting to a Concur implementation server. Select Yes if connecting to an implementation server. Defaults to No.

7

Use the Authentication type drop-down menu to select Authorization code grant.

8

Use the second Location drop-down menu to select the location of your Concur implementation server.

9

Optional. Expand Advanced settings and use the Scopes drop-down menu to select OAuth 2.0 scopes. Refer to Minimum and default scopes for requirements.

10

Use the Custom OAuth profile drop-down menu to select the custom OAuth profile configured with your SAP Concur client credentials.

11

Click Connect. You are redirected to SAP Concur to sign in and authorize access.

Required scopes by trigger and action

The credentials you use to set up the SAP Concur connection must have access to certain scopes depending on the triggers and actions you plan to use.

REQUIRED SCOPE

The EXPRPT scope is required for connection setup.

Each trigger and action in the connector uses a specific API version due to SAP Concur's granular versioning approach.

The following table lists:

• The scopes required for each trigger and action
• The API name and version associated with each trigger and action

Refer to the SAP Concur API Reference (opens new window) documentation for more information.

Name	Scopes	API group	API name and version
New expense report trigger	EXPRPT	Expense	Reports v3
New expense report submission trigger	EXPRPT	Expense	Reports v3
New or updated expense report trigger	EXPRPT	Expense	Reports v3
New or updated invoice trigger	INVPMT	Invoice	Invoice v3
New or updated user trigger	identity.user.ids.read, identity.user.core.read, identity.user.coresensitive.read, identity.user.enterprise.read, identity.user.sap.read	User	Identity v4
Create list item action	spend.listitem.write, LIST	Common	List Item v4
Create user action	user.provision.write, identity.user.coreenterprise.writeonly, identity.user.externalID.writeonly, spend.user.general.writeonly	User	User Provisioning v4
Create users action (batch)	user.provision.write, identity.user.coreenterprise.writeonly, identity.user.externalID.writeonly, spend.user.general.writeonly	User	User Provisioning v4
Create vendors action (batch)	INVVEN	Invoice	Vendor v3.1
Delete list item action	spend.listitem.delete	Common	List Item v4
Get all attendee types action (batch)	CONFIG	Expense	Expense Group Configurations v3
Get all expense group configurations action (batch)	CONFIG	Expense	Expense Group Configurations v3
Get all expense types action (batch)	CONFIG	Expense	Expense Group Configurations v3
Get all list item action (batch)	spend.list.read	Common	List Item v4
Get all lists action	spend.list.read	Common	List v4
Get all payment types action (batch)	CONFIG	Expense	Expense Group Configurations v3
Get expense report details action	expense.report.read	Expense	Reports v4
Get invoice details action	INVPMT	Invoice	Invoice v3
Get itemizations of specific expense action	expense.report.read	Expense	Expenses v4
Get user action	travel.user.general.read, travel.user.private.read, spend.user.general.read, user.provision.read	User	Travel Extension v4, User Provisioning v4
Get user provisioning status details action	user.provision.read	User	User Provisioning v4
Retrieve children of list item action	spend.listitem.read	Common	List Item v4
Search expense reports action (batch)	EXPRPT	Expense	Reports v3
Search users action (batch)	identity.user.ids.read, identity.user.core.read, identity.user.coresensitive.read, identity.user.enterprise.read, identity.user.sap.read	User	Identity v4
Search vendors action (batch)	INVVEN	Invoice	Vendor v3.1
Submit an expense report through a workflow action	EXPRPT	Expense	Submit v1.1
Update user action	user.provision.write, identity.user.coreenterprise.writeonly, identity.user.externalID.writeonly, spend.user.general.writeonly	User	User Provisioning v4
Update user action (batch)	user.provision.write, identity.user.coreenterprise.writeonly, identity.user.externalID.writeonly, spend.user.general.writeonly	User	User Provisioning v4
Update vendors action (batch)	INVVEN	Invoice	Vendor v3.1
Upload receipt image action	IMAGE	Receipt Image	Image v3
Get entry image URL action	IMAGE	Receipt Image	Image v1.0
Get expense report details action (deprecated)	expense.report.read	Expense	Expenses v4
Get payment batch list action (deprecated)	PAYBAT	Expense	Payment Batches v1.1
