S3 Data Lake

S3 Data Lake (opens new window) is a centralized repository that allows you to store your structured and unstructured data at any scale. You can use the S3 Data Lake connector in Workato to run custom AWS Glue jobs and manage datasets in your AWS environment.

Prerequisites

Ensure you meet the following requirements before you set up a connection:

• An active AWS account
• IAM user or role with the following required permissions:
  • glue:GetDatabases
  • glue:GetDatabase
  • glue:GetTables
  • glue:GetTable
  • glue:CreateTable
  • glue:CreateJob
  • glue:DeleteJob
  • glue:StartJobRun
  • glue:GetJobRun
  • glue:GetCatalogs
  • s3:GetObject
  • s3:PutObject
  • s3:DeleteObject
  • s3:ListBucket

Connection setup

You can create a connection to your S3 Data Lake account using either Access key or IAM role authentication:

1

Sign in to your Workato account.

2

Create a new connection and select the S3 Data Lake connector.

3

Enter a Connection name to identify the connection.

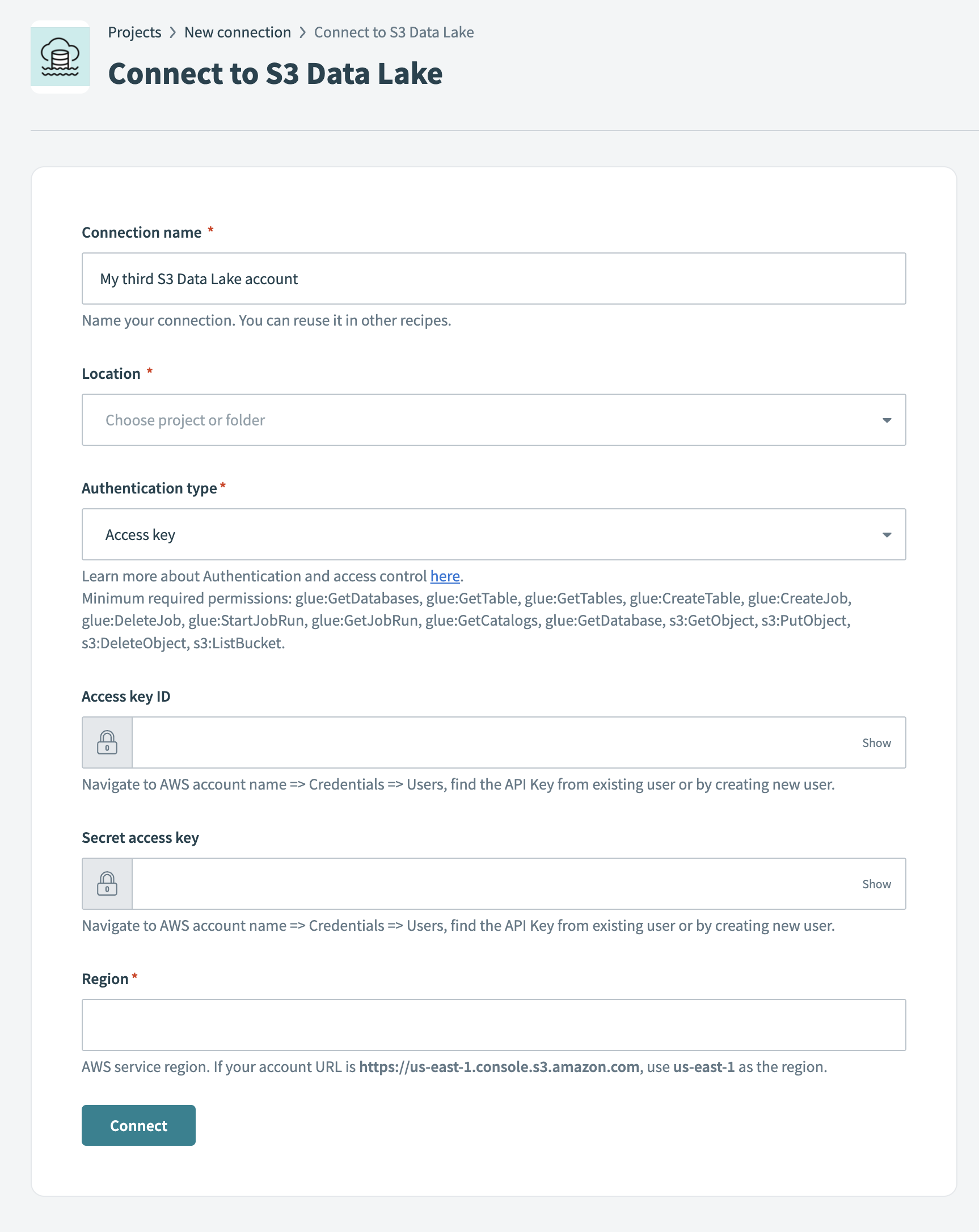

Configure S3 Data Lake connection in Workato

4

Select the Location where you plan to store the connection.

5

Select Access key as the Authentication type. Refer to the Identity and access management for AWS Glue (opens new window) guide for more information about IAM-based access.

6

Enter the Access key ID and Secret access key from your IAM user. Go to IAM > Users > [your user] > Security credentials in the AWS console to retrieve these credentials. Refer to Use IAM role-based authentication for AWS Services for more information.

7

Enter the AWS Region where your S3 buckets and Glue jobs reside. For example, your region is us-east-1, if your console URL is https://us-east-1.console.s3.amazon.com.

8

Click Connect.

1

Create a new connection and select the S3 Data Lake connector.

2

Enter a Connection name to identify the connection.
Connection name

3

Select the Location where you plan to store the connection.

4

Select IAM role as the Authentication type. Refer to the Identity and access management for AWS Glue (opens new window) guide for more information about authentication and access control.

5

Create a new IAM role in your AWS account and add the following settings:

• Use your Workato AWS Account ID as the Principal.
• Use your Workato External ID as the External ID.

6

Enter the newly created IAM role ARN.

7

Enter the AWS Region where your S3 buckets and Glue jobs reside.

8

Click Connect.
