# Custom log messages

You can customize audit log messages before streaming them to external destinations like Amazon S3, Splunk, or Datadog.

For example, a customized log message can include the source application and environment metadata so that event logs are automatically processed in the destination application.

# Create a custom log message

Complete the following steps to create a custom log message:

1

Go to Workspace admin > Settings > Log streaming.

2

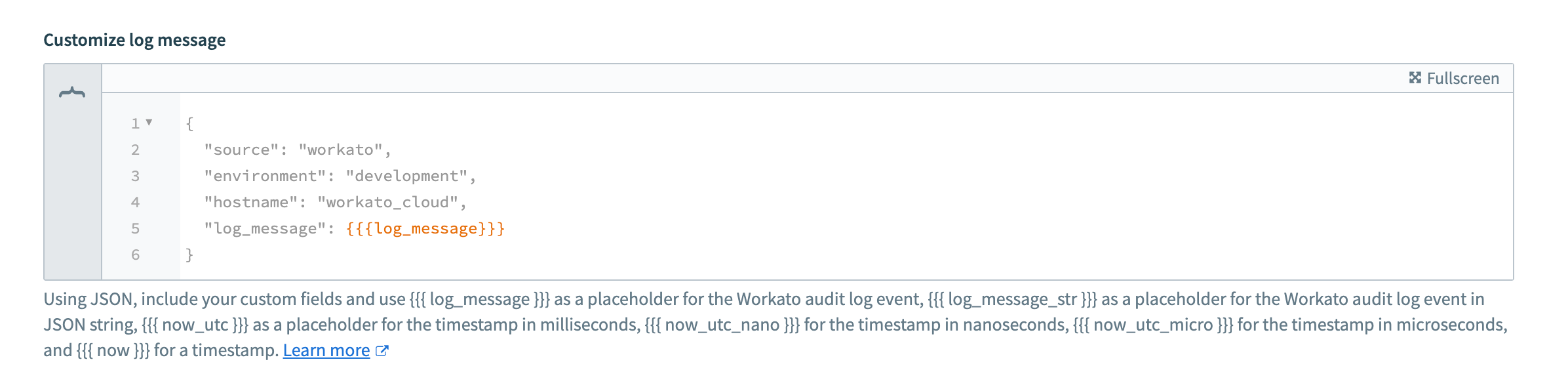

Locate the Customize log message field and enter a custom log message using JSON. You can also use placeholders to define the JSON structure. Workato replaces placeholders with actual log messages before streaming the event.

Customize the log messageCustomize the log message

3

Click Save.

# Supported placeholders

Workato supports the following placeholders:

Placeholder Description Example
{{{log_message}}} Audit log event message as JSON See examples
{{{log_message_str}}} Audit log event message as an escaped JSON string. Required for logs sent to Grafana Loki. See example
{{{now}}} Timestamp 2023-06-02T01:30:01.002-04:00
{{{now_utc}}} Timestamp in milliseconds 1685683801002.2139
{{{now_utc_micro}}} Timestamp in microseconds 1685683801002213
{{{now_utc_nano}}} Timestamp in nanoseconds 1685683801002214000

JSON KEYS

Currently, if you're using the placeholders in a JSON object, each key must match the name of the placeholder in the value. For example, if you use the placeholder {{{log_message_str}}}, you must give it the key "log_message_str":

{
 "log_message_str": {{{log_message_str}}},
 "now_utc_micro": {{{now_utc_micro}}}
}

# Example custom log message

In the following example, we send the source, environment, and service fields to Datadog so that the message is automatically routed and stored in the correct bucket.

The {{{log_message}}} is the placeholder that Workato uses to substitute the actual audit log event message in JSON format.

{
  "source": "workato",
  "environment": "staging",
  "hostname": "workato_cloud",
  "service": "emp_onboarding",
  "log_message": {{{log_message}}}
}

VALID JSON REQUIRED

Make sure you define valid JSON. If the JSON is invalid or does not contain either the {{{log_message}}} or {{{log_message_str}}} placeholder, then Workato will send the default log message without any customization.

The following images show what the log message looks like in the Datadog log explorer.

Custom audit log message fieldsCustom audit log message fields

Custom audit log message for recipe started eventCustom recipe started activity audit log message

Custom audit log message for a successfully completed jobCustom job history audit log message

# Example custom log message for Grafana Loki

The Grafana Loki HTTP API (opens new window) requires the log message to be sent as a string, so you must use the {{{log_message_str}}} placeholder instead of {{{log_message}}}.

The Loki API also expects a nanosecond timestamp formatted as a string. Use the "{{{now_utc_nano}}}" placeholder surrounded by double quotes to ensure the timestamp is converted to a string.

Format the JSON structure for the custom audit log message as follows:

{
  "streams": [
    {
      "stream": {
        "label": "workato"
      },
      "values": [
          ["{{{now_utc_nano}}}", {{{log_message_str}}}]
      ]
    }
  ]
}

Example custom log message sent to Loki:

{
 "streams": [
  {
   "stream": {
    "label": "workato"
   },
   "values": [
    [
     "1685687453790827508",
     "{\"event\":\"recipe_started\",\"details\":{\"run_once\":false,\"request\":{\"ip_address\":\"76.100.203.123\",\"user_agent\":\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/112.0.0.0 Safari/537.36\"}},\"user\":{\"id\":1234567,\"external_id\":null,\"email\":\"[email protected]\",\"name\":\"Example User\",\"environment_id\":1234567,\"environment_type\":\"dev\",\"account_id\":1234567,\"account_name\":\"Example User\"},\"team\":{\"id\":1234567,\"external_id\":null,\"email\":\"[email protected]\",\"name\":\"Example User's team\",\"environment_id\":1234567,\"environment_type\":\"dev\",\"account_id\":1234567,\"account_name\":\"Example User\"},\"resource\":{\"type\":\"Flow\",\"id\":16983123,\"name\":\"Cat Fact Generator\",\"path\":\"Home/AI Testing\",\"folder_id\":9020123},\"timestamp\":\"2023-06-02 06:30:53 UTC\"}"
    ]
   ]
  }
 ]
}
