Export API

FEATURE AVAILABILITY

This feature is only available to users on specific pricing plans. Refer to your pricing plan and contract to learn more.

You can export conversations and messages for internal analytics, GDPR compliance, or storage.

The Export API includes two endpoints:

• Get conversations: Returns metadata and attributes for conversations.
• Get messages: Returns individual messages exchanged between customers, agents, and the AI agent.

Base URL

Use the following base URL when making API requests to AgentX Support:

https://api.converseapps.com

Usage limits

The following limits apply to the Export API for AgentX Support:

• Rate limit: 3 requests per second per endpoint.
• Page size: Each request returns up to 1000 records and uses cursor-based pagination.

API key

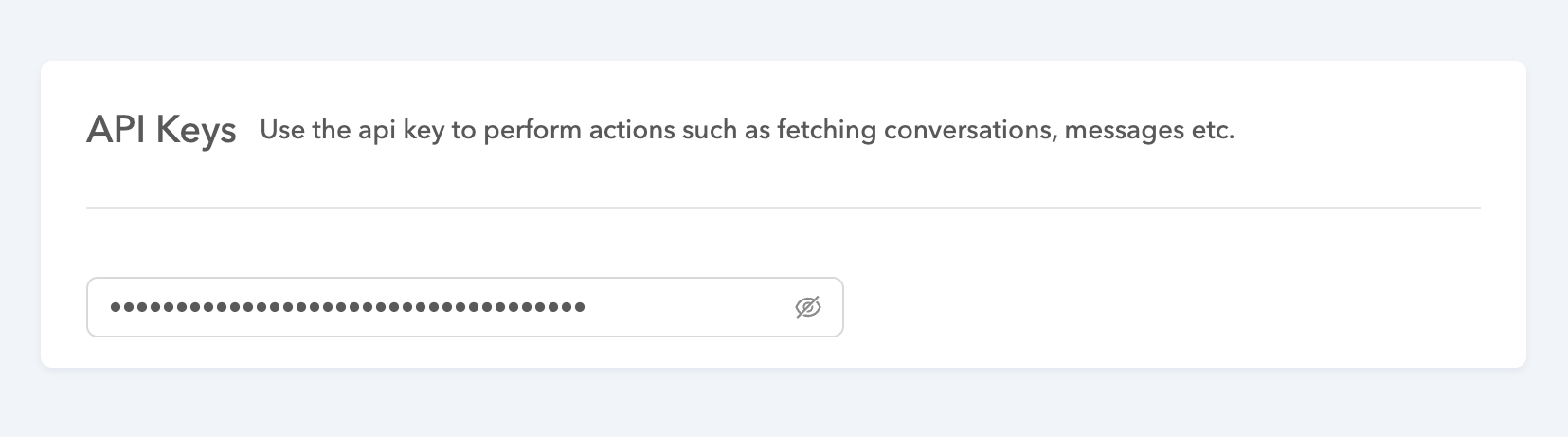

You must have an API key to access the endpoints in the Export API for AgentX Support. The API key can be found under Account > API and is only visible to site admins.

Retrieve the API key

Get conversations

Returns data about customer conversations handled by your AI agent.

GET /conversations/export/v1/conversations

Query parameters

Parameter	Type	Description
start_time	integer required	Start of the export window (Unix timestamp, in seconds).
end_time	integer required	End of the export window (Unix timestamp, in seconds).
bot_name	string required	The bot name or ID of the AI agent.
per_page	integer optional	Number of records to return. The maximum is 1000.
cursor	string optional	Used for pagination to fetch the next batch of results.

Sample request

curl -X GET 'https://api.converseapps.com/conversations/export/v1/conversations?start_time=1696118400&end_time=1696550400&bot_name=r3-218210&per_page=1000' \
  -H 'x-api-key: <api_key>'

Pass the cursor value returned in the response until it is null to load the next page of results.

Response

{
    "data": [
        {
            "_id": "5c80416892d94e40a64cea7dc6406e25",
            "startTime": 1744750665,
            "locale": "en_us",
            "metadata": {
                "locale": "en_us",
                "browser_visitorType": "repeat",
                "browser_screenResolution": "1728x1117",
                "browser_localTime": 1744750695136,
                "draft": true,
                "question": "my camera is offline",
                "transcript": "User:\tmy camera is offline",
                "guideNodeCount": 5
            },
            "tags": [
                "guideInteraction"
            ],
            "userMessageCount": 6,
            "lastActionAt": "2025-04-15T20:58:15.384884"
        },
    ],
    "cursor": null
}

Field	Description
_id	Unique ID for the conversation.
startTime	The conversation's start time.
lastActionAt	Timestamp of the last update in the conversation.
locale	Locale of the conversation.
tags	Tags applied to the conversation. For example, resolved, informed.
metadata	Includes both system and custom metadata added during the conversation.

Get messages

Returns message-level data from within conversations, including message type, sender, timestamps, and content.

GET /conversations/export/v1/messages

Query parameters

Parameter	Type	Description
start_time	integer required	Start of the export window (Unix timestamp, in seconds).
end_time	integer required	End of the export window (Unix timestamp, in seconds).
bot_name	string required	The bot name or ID of the AI agent.
per_page	integer optional	Number of records to return. The maximum is 1000.
cursor	string optional	Used for pagination to fetch the next batch of results.
conversation_id	string optional	Filter messages for a specific conversation.

Sample request

curl -X GET 'https://api.converseapps.com/conversations/export/v1/messages?start_time=1696118400&end_time=1696550400&bot_name=r3-218210&per_page=1000' \
  -H 'x-api-key: <api_key>'

Pass the cursor value returned in the response until it is null to load the next page of results.

Response

{
  "data": [
    {
      "_id": "aee4189e0429449a9c8c3bba88bf140c",
      "time": 1744651778.652,
      "type": "Question",
      "outMsg": {
        "steps": [
          {
            "text": "Hello 👋 I am a virtual assistant. How can I help you?"
          }
        ]
      },
      "conversationId": "7eee0bbc78414f649a311c7ce4a87ead"
    },
    {
      "_id": "33f34335-bd8a-41a7-8ce1-73542fcc2b9c",
      "time": 1744651783,
      "type": "UserInput",
      "userInput": "Tell me about Comfort Headphones",
      "conversationId": "7eee0bbc78414f649a311c7ce4a87ead"
    },
    {
      "_id": "4514b1a468394c9f986ac8ffdad577ad",
      "time": 1744651793.839,
      "type": "Question",
      "outMsg": {
        "steps": [
          {
            "text": "Here are the details for Comfort Headphones:\n\n💲 Price: $89.99\n📦 In Stock: Yes"
          },
          {
            "text": "Did that answer your question?"
          }
        ],
        "options": [
          { "txt": "Yes" },
          { "txt": "No" }
        ]
      },
      "conversationId": "7eee0bbc78414f649a311c7ce4a87ead"
    }
  ],
  "cursor": null
}

Field	Description
_id	Unique ID of the message.
time	Timestamp when the message was sent.
conversationId	ID of the conversation this message belongs to.
type	Type of message. For example, UserInput, BotMessage.
outMsg	Content of the message from the AI agent.
userActionType	Type of user action. This is present only for UserInput messages.
userInput	Content of user input. For example, a message text, quick reply, or form submission.
